Description

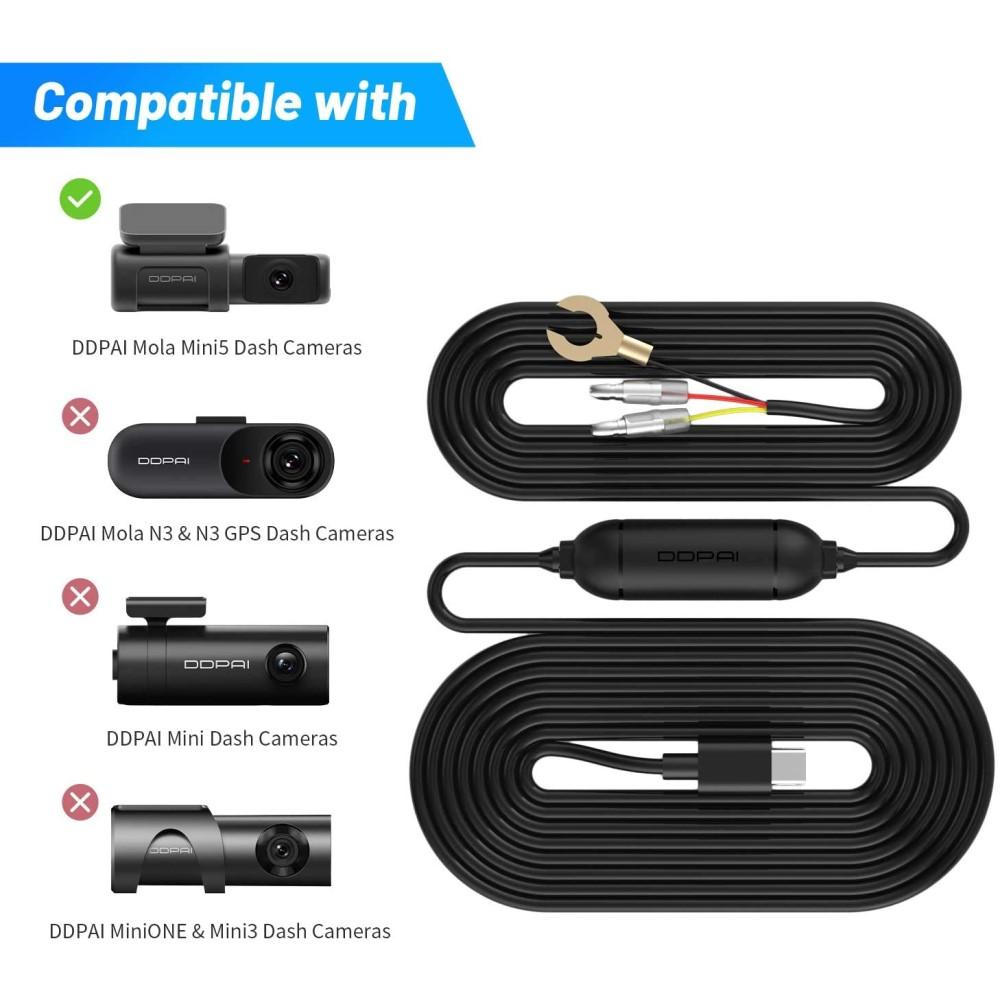

DDPAI MINI5 Dash Cam Hardwire Kit
Upgrade the Dash Cam Mini 5 Hardwire Kit 12v-24v to 5v(Mini Type C/ 11.5ft):
It’s a must-have if you’re using a dash camera in your car or truck. It connects the camera directly to the fuse box under the dashboard for continuous power from the vehicle’s battery. Our hard wire kit frees up the 12-volt power socket (the cigarette lighter) for other uses. as the hidden wiring,it will make your car more neat.
Specifications:
★ Connector Type: Mini Type-C
★ Input: 9V-24V
★ Output: 5V / 2A
★ Working Temperature:-40~160°F
★ Cable Length: 11.5ft (3.5M)
★ Low Voltage Protection: When voltage lower than 11.6 V or 23.5 V, automatically cut off the power

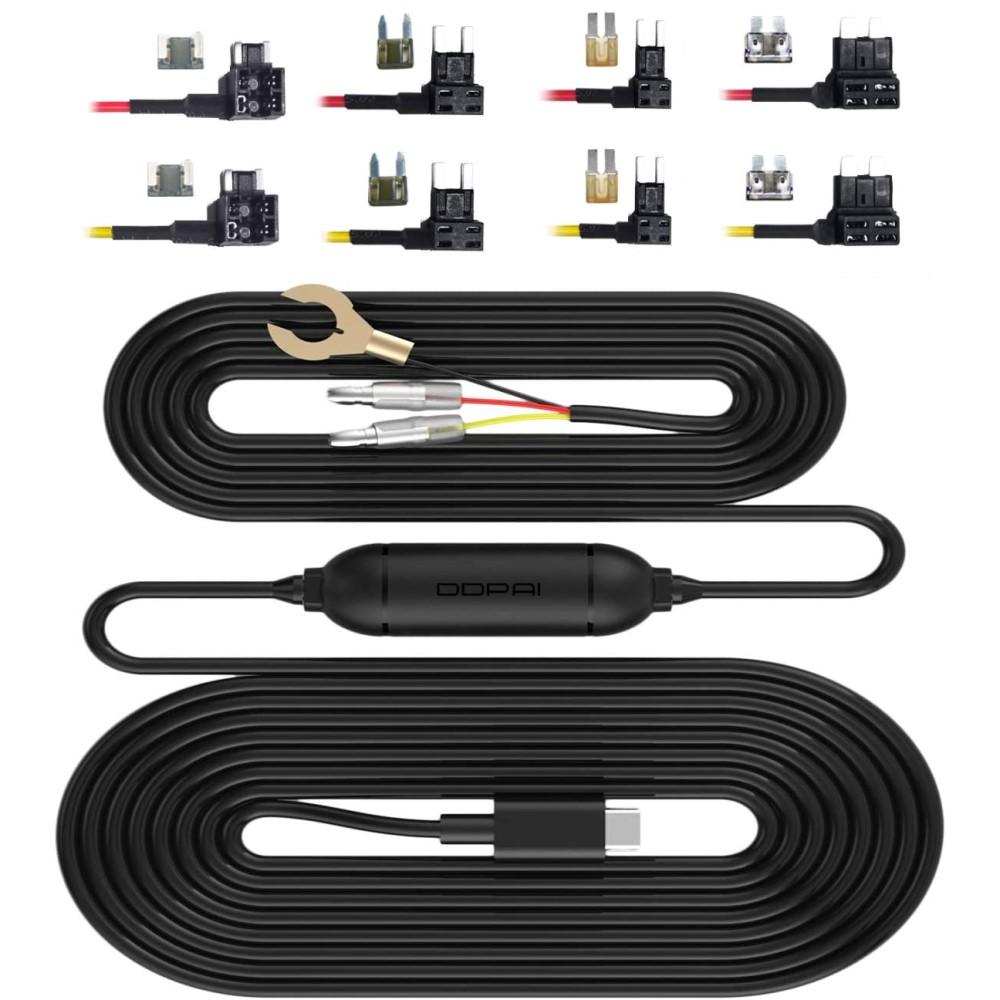

Package Contents:
1 x Hardwire Kit
6 x Fuse Tap
6 x Blade Fuse
1 x Quick Guide
Tips:
★1)We strongly recommend the professional installation of the Hardwire Kit.
★2)Please make sure the ignition is off before installing the Hardwire Kit.
★3)Carefully utilize the tool to test and check the polarity and grounding ★before confirming the installation.
★4)For safety reasons, we strongly recommend that you do not use any fuse slot used by any of your vehicle’s critical components, such as the Air Bags.

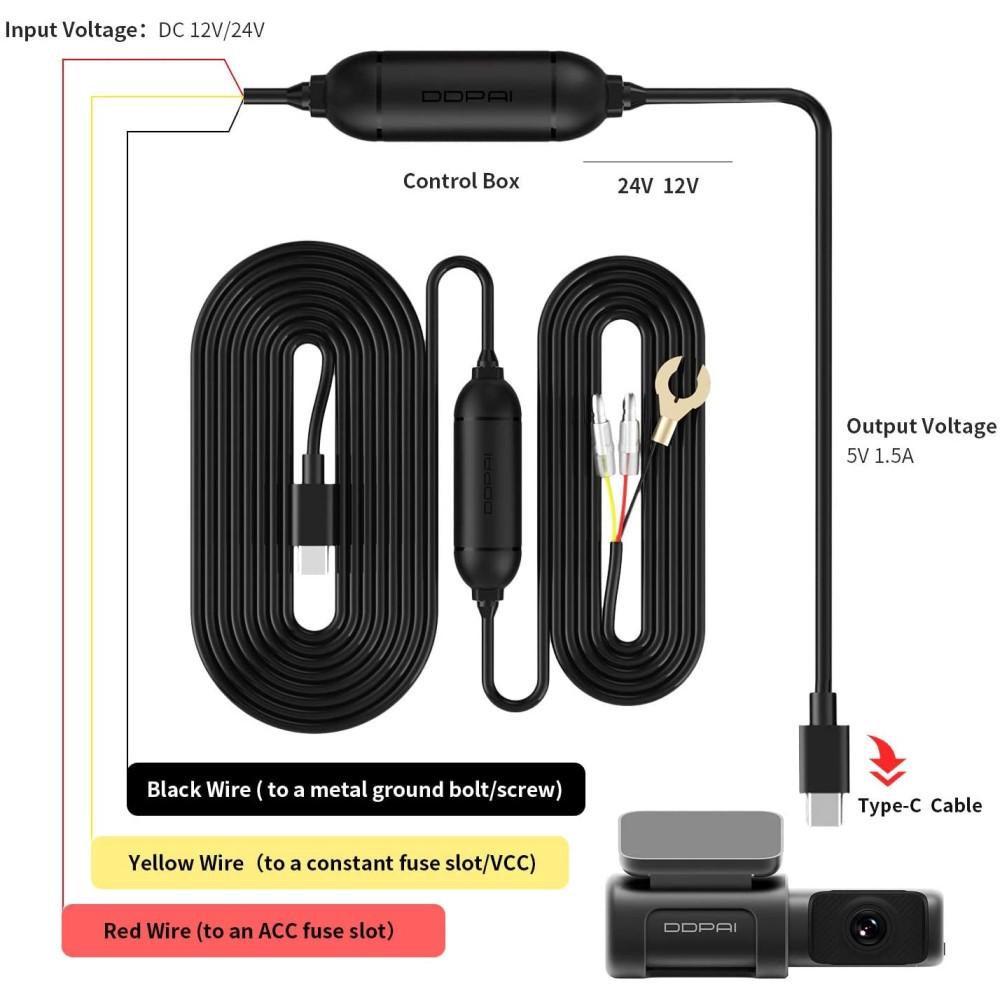

Installation Steps
Step 1: Connect the Red Wire of the Hardwire Kit with one type of Fuse Taps that your vehicle requires.
Step 2: Locate the Fuse Box and find an ACC Fuse Slot in it. ACC Fuse Slot only has power when the ignition is on.

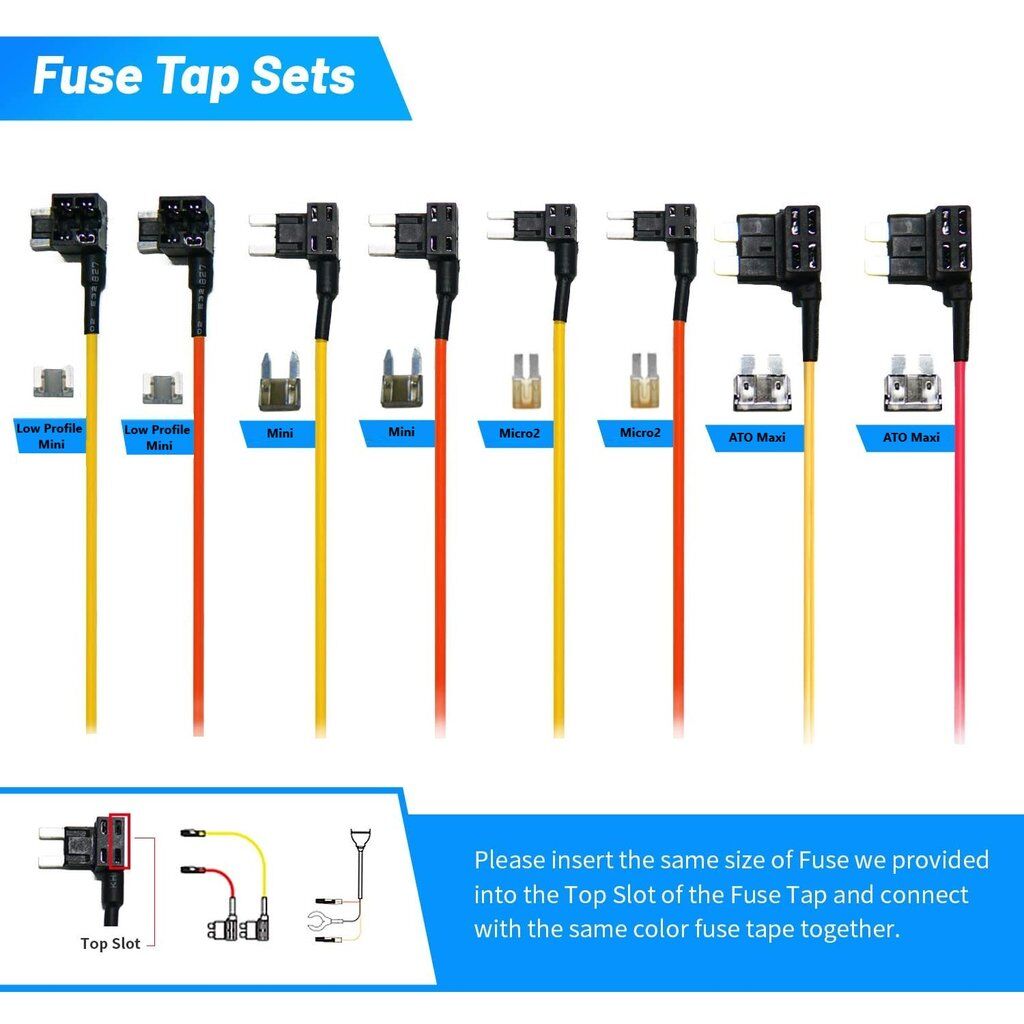

Step 3: Remove the original Fuse in the ACC Fuse Slot and install it into the Bottom Slots of the Fuse Tap. Insert the same size of Fuse we provided into the Top Slots of the Fuse Tap.
Step 4: Connect the Red Wire of the Hardwire Kit to the positive terminal of the ACC Fuse Slot in the Fuse Box.
Step 5: Crimp the Black Wire and screw it down to any non-coated metal bolt/screw in your vehicle
